Avacom Charger for external power supply 6V
Code: T3061Product detailed description

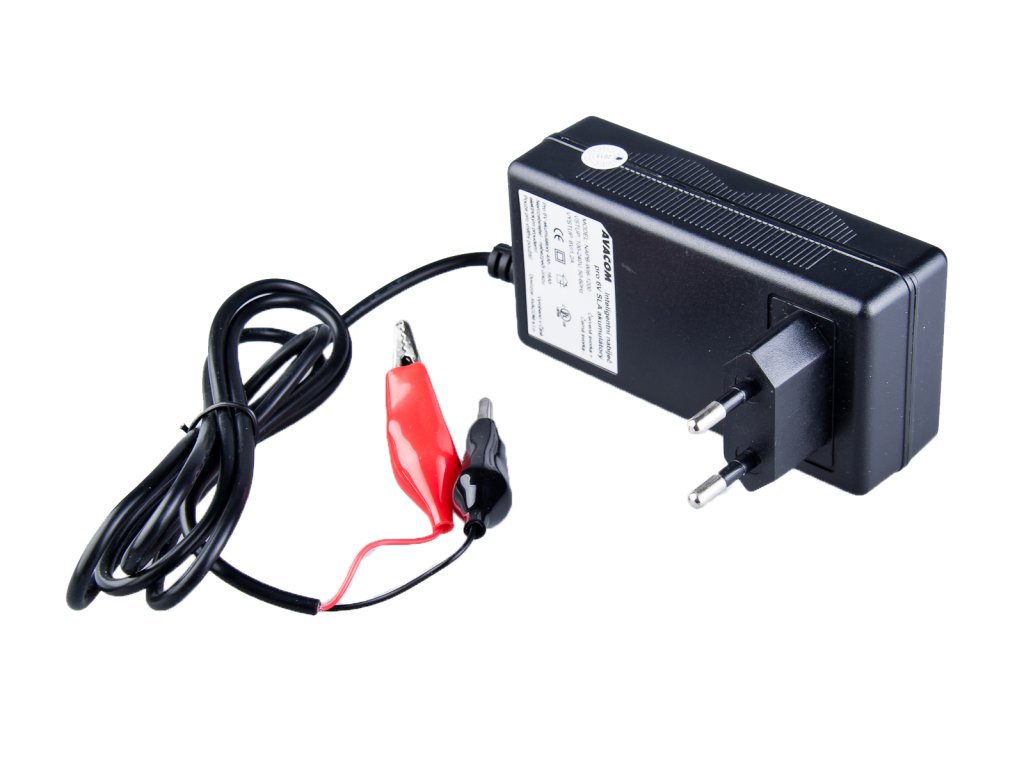

Microprocessor-controlled three-stage 6V/1.2A charger for VRLA AGM/GEL batteries with a capacity of 4 - 16Ah with electronic output protection against short circuit and reverse polarity.
This charger is used to charge maintenance-free, hermetically sealed AGM/GEL batteries and is designed for use in dry and ventilated rooms. The charging process itself is controlled electronically, so there is no risk of overcharging the battery. The charger can also be used as a maintenance charger, i.e. it can be connected to the battery even after the green LED has lit up. Specifications:
Warning: We recommend using the charger only to recharge batteries with a capacity corresponding to the technical specifications of the product. Charging batteries with a higher capacity will significantly increase the charging time. Using the charger with a battery with a lower capacity may damage it.
Input voltage
100-240 V, 50-60 Hz
Max. power consumption
9 W
Nominal output voltage
6 Vss
Output voltage range
6.7 Vss - 6.9 Vss
Maximum charging current
1.2 A ( +/- 0.1A)
Recommended battery capacity
4 Ah - 16 Ah
Operating temperature range
0 - 40°C
Charging time
5 - 10 hours
Weight
150 g
Dimensions
100 × 50 × 30 mm
Additional parameters
| Category: | Others |
|---|---|
| EAN: | 8591849050780 |
