Product detailed description

The Lynx Pro series monoculars are an excellent choice as your first thermal imaging device for a variety of scenarios.

• Temperature sensitivity < 35 mK
• 384 × 288 px sensor
• 1280 × 960 px LCOS display
• Lightweight with built-in battery
• Battery life up to 7.5 hours

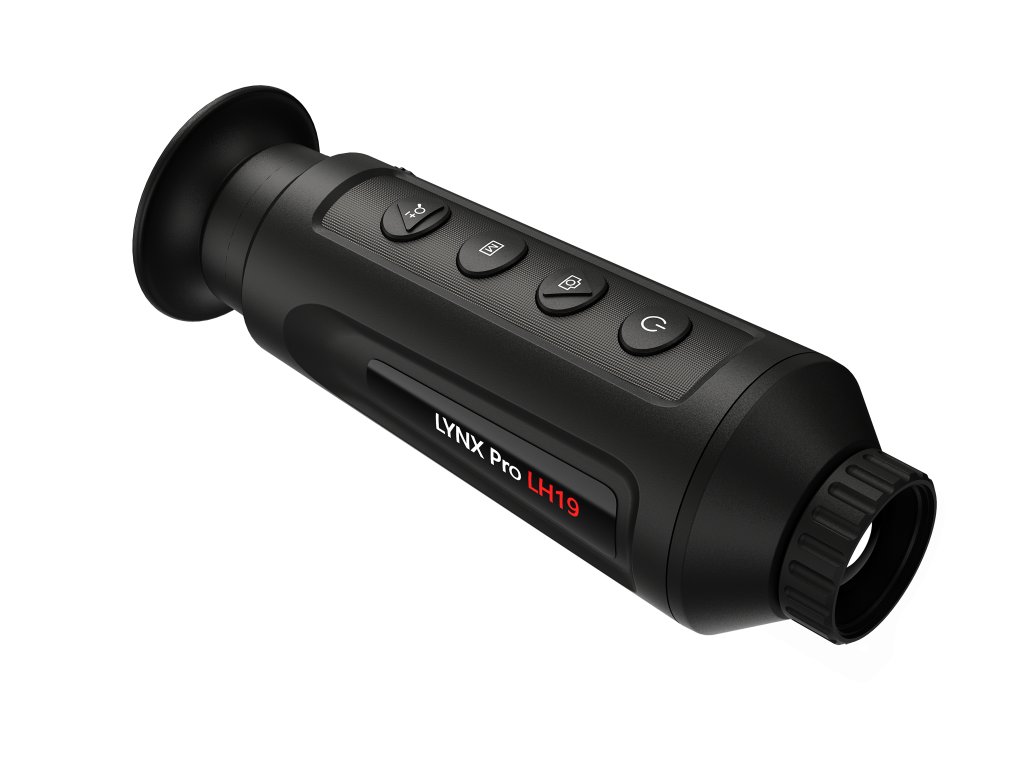

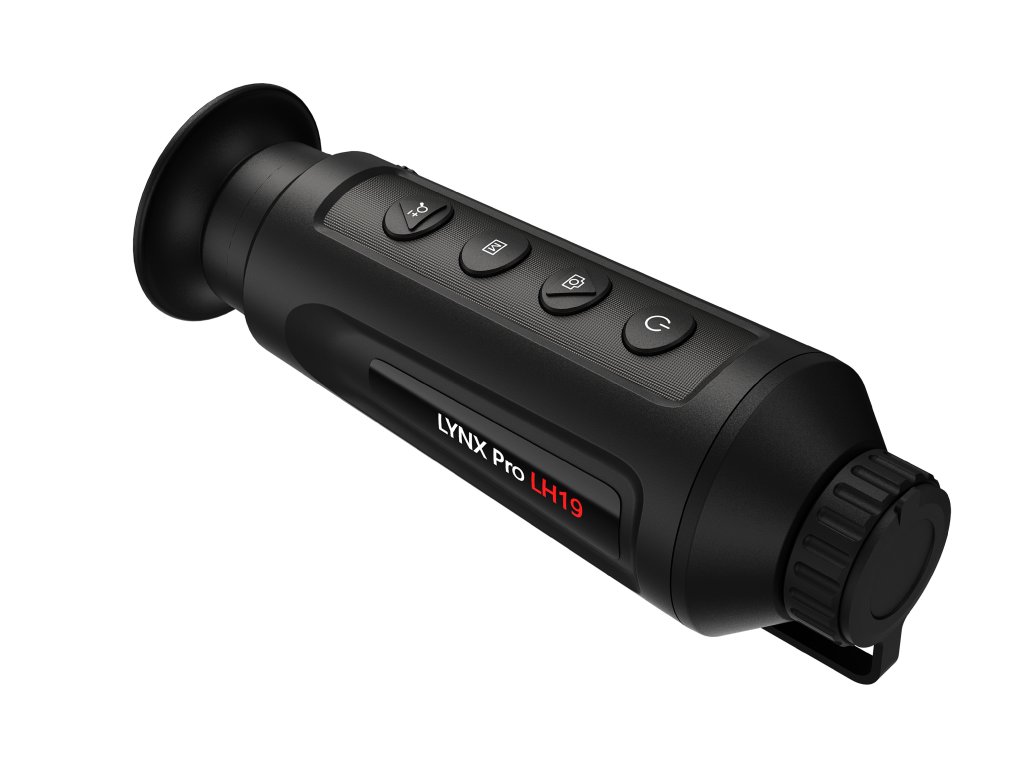

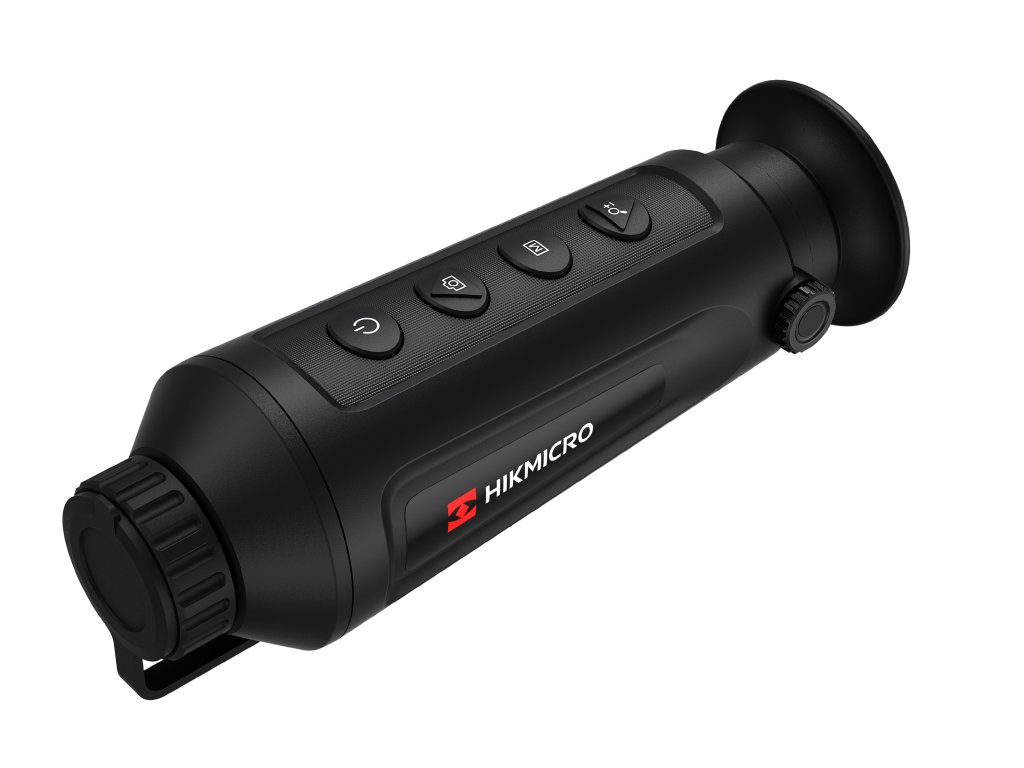

The Lynx Pro LH19 monocular is equipped with a thermal sensor with NETD sensitivity < 35 mK and a resolution of 384 × 288 px. The lower the NETD value, the better the sensor can detect even the smallest temperature differences between objects, providing you with a detailed image.

Thanks to the lens with a focal length of 19 mm, the detection range of the device is 900 meters.

The entire scene is displayed on a LCOS display with a resolution of 1280 × 960 px. You can switch between four color palettes, measure distance using the rangefinder and zoom in using the digital zoom up to 8x.

The Lynx also features automatic gain control (AGC), digital image enhancement (DDE) and three-dimensional noise reduction (3D DNR).

The built-in battery provides up to 7.5 hours of continuous viewing, and there is a sleep mode function for maximum battery life.

It also features IP67 water resistance and durability. This makes the Lynx Pro suitable for harsh conditions such as rain and snow.

We provide a 3-year warranty on the device and guarantee a replacement device if service is required.

Specifications:

Wi-Fi	Yes
Sensor	384 × 288 px
Temperature sensitivity	< 35 mK
Display resolution	1280 x 960 px
Lens	19 mm
Detection	900 m
Optical magnification	1.9x
Field of view	13.8° × 10.4°
Digital zoom	up to 8x
Diopter correction	-4D ～ +5D
Photo capture option	Yes
Video recording option	Yes
Protection rating	IP67
Memory	built-in, 8 GB
Operating temperature	-20°C to 55°C
Battery	built-in Li-ion
Battery life	7.5 hours
Weight	310 g
Dimensions	171 x 61 x 57 mm



Package contents:

• HIKMICRO LYNX PRO LH19 thermal imaging monocular
• 1x protective fabric cover
• 1x wrist strap
• 1x USB data cable
• Optical cleaning cloth
• Instructions in Czech and Slovak
