Ork Hunter NIGHT HB-4 night vision binocular

Product detailed description

Ork Hunter NIGHT HB-4 night vision binocular

Step into the world of immersive 3D vision with the Ork Hunter NIGHT HB-4, an advanced binocular night vision system designed for explorers, photographers, and outdoor professionals. Combining cutting-edge optical technology with 3D imaging and video capture capabilities, it transforms your nighttime and low-light experience into vivid, lifelike visuals. Whether used handheld, head-mounted, neck-hanging, or helmet-mounted, the HB-4 provides unmatched versatility for field use. Its large built-in display delivers a cinematic 100-inch viewing effect at 2.5 meters, making observation and recording effortless and engaging even in total darkness.

Features:
- Dual-Lens 3D System – Capture and view photos or videos in full 3D with dual fixed lenses for natural depth perception.
- Powerful Night Vision – Enables clear viewing up to 150 meters in total darkness and from 1.5 m to infinity in low-light conditions.
- Versatile Mounting Options – Use it handheld, mounted on a helmet or head bracket, or comfortably worn around the neck.
- Auto Eye Sensor – Automatically turns the display on or off for battery efficiency and quick response.
- 3D VR Experience – Built-in large dual display simulates a 100-inch screen, offering immersive viewing of captured 3D media.
- High Storage Capacity – Dual TF card slots support up to 512 GB, allowing extended recording sessions.
- Customizable Image Control – Adjustable brightness, sharpness, exposure, ISO, and IR illumination levels for optimal results in any scenario.
- Weather Resistant – Rated IP54 for protection against dust and light splashes, ensuring reliability in outdoor use.

Specification:
Product Name: Ork Hunter
Model: NIGHT HB-4

Imaging&Display:
3D photo resolution: 8000x6000x2, 6912x5184x2, 6144x4608x2, 4608x3456x2, 3264x2448x2, 2592x1944x2, 1280x960x2 Narrow Angle, 640x480x2 Narrow Angle
3D video resolution: 3840x2160x2, 2880x1520x2, 1920x1080x2, 1280x960x2, 1280x720x2, HD-1280x720x2, 1280x720x2 Narrow Angle, 640x360x2 Narrow Angle
Night vision enhancement: Black & White
Sharpness: Sharp, Normal, Soft
Exposure: From +3 to -3
Display Brightness: 7 levels
Video frame rate FPS: Auto only, from 5fps to 30fps according to scenarios
ISO (Photo mode): Auto,100, 200, 400, 800,1600, 3200
Frequency: 50Hz, 60Hz
OSD: Yes
Date Stamps: Support on photo and video
3D view software: Merge Synthesis Тool
Auto off (minutes): 1, 3, 5 minutes

Vision:

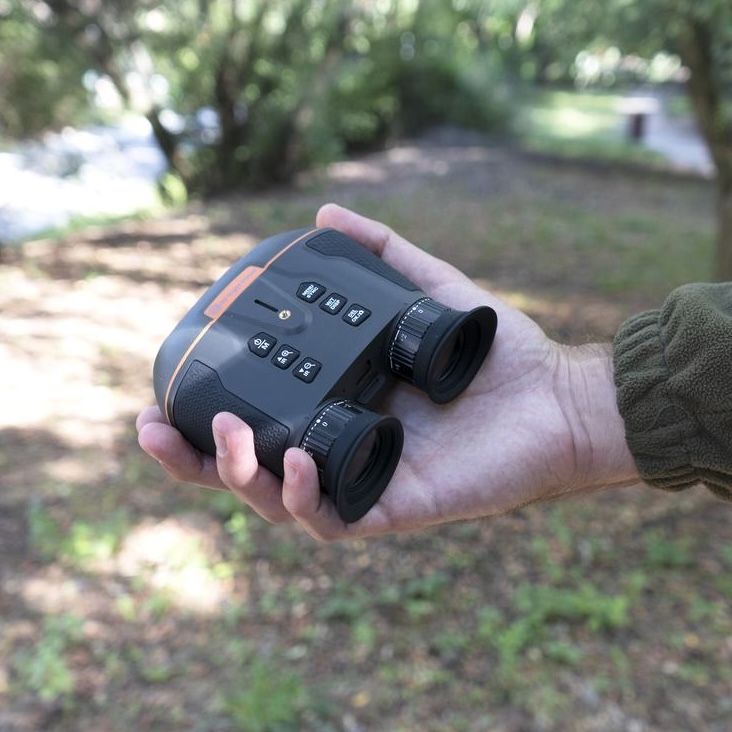

Lens: Dual (fixed)
IR levels: 3-7 (depending on battery power level)
Aperture: F1.2
Focal length: 5.58 mm
FOV (Field of View): 58°
Digital Zoom: x12
Visual distance:
Total darkness: 100-150 meters
Weak light: 1.5 meters to infinity

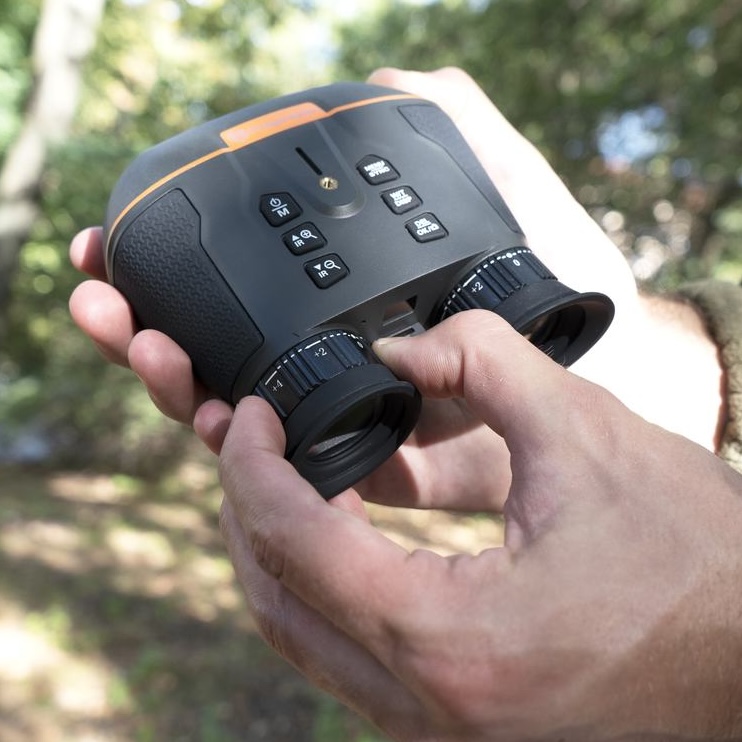

Vision adjustable: Dioptre +/- 4

Physical:
IR LED: 3W
Display screen: Dual
Audio: Speaker and Microphone
Storage: Double TF card, up to 512GB (Recording requires both cards to be inserted)
Eye sensor: Yes
Operation Buttons: 6
USB port: Type-C
PC Mode: USB Flash, PC camera
Power supply: 3600mAh Lithium battery, USB Type-C rechargeable (Power adapter not included)
Protection class: IP54

Common:
Operation Temperature: -20°C to +50°C
Dimension: 118x125x51mm
Weigh: 309g

Download Documentation

Package Include:
1x Ork Hunter NIGHT HB-4
1x Helmet-mounted adjustable bracket
1x Head adjustable bracket
1x Neck-hanging belt
1x Carry bag
2x Micro-SD 32GB
1x USB Type-C 100mm cable
